STAYING ON TRACK

For the past decade, Lesmac has been deeply involved with the rail industry, guiding products through every stage of approval from initial concept and field trials to prototype testing and final type approval on several critical railway components.

ACCREDITATION

We hold Link-up accreditation and are recognised as approved suppliers for Network Rail, as well as all major contractors, including:

• London Underground.
• Docklands Light Railway.

WHAT PRODUCTS DO WE PROVIDE?

We offer an extensive selection of fasteners, ranging from basic wood screws to specialised bolts and fixings, ensuring we meet the needs of any specific use case with precision and quality. All products approved by Network Rail and London Underground.

Fassetta Clamps & Replacement Bolts

C-Clamps
For Flat Bottom Ballasted Track

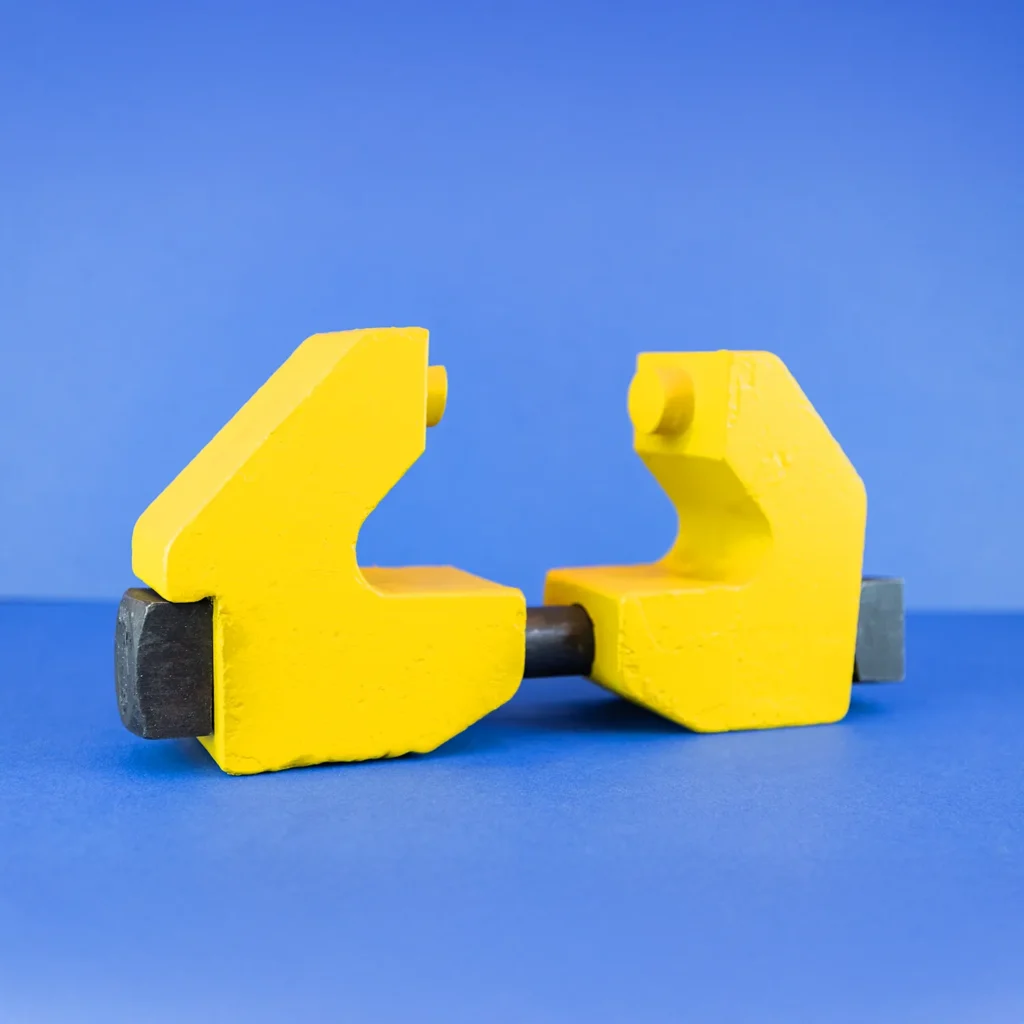

C-Clamps
For Bullhead Ballasted Track

C-Clamps
For Flat Bottom Concrete Track

Underground Clamp
Flat Bottom Ballasted Track

Underground Clamp
Bullhead Ballasted Track

C-Clamps
For Flat Bottom Concrete Track

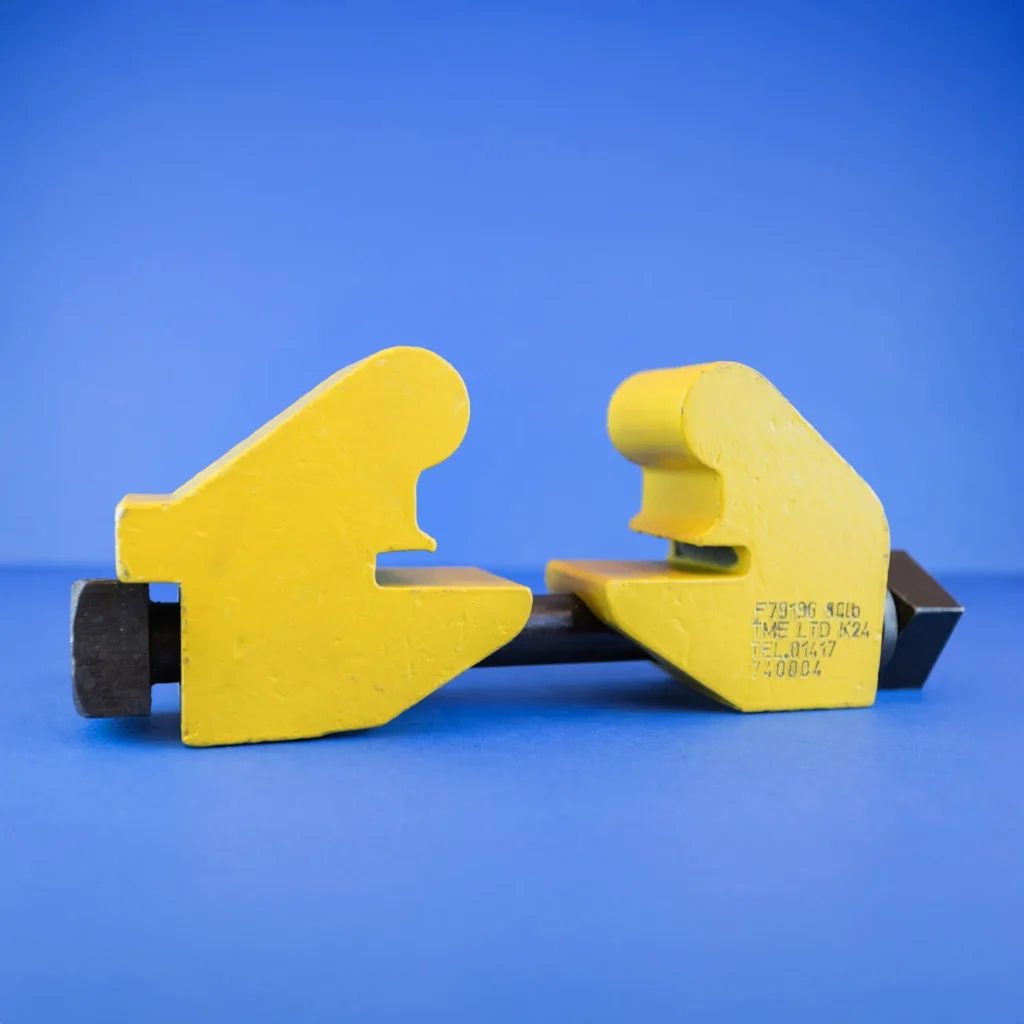

C-Clamps
For Flat Bottom 80lb Track

The Clamp Family

In rail maintenance, clamps are used to secure rails to sleepers, ensure proper alignment, support joint welding, and perform emergency repairs. They stabilize rails during installation, prevent rail creep, and assist in lifting and handling rails. Clamps are essential for maintaining track integrity, enabling precise adjustments, and ensuring safety during repairs and operations.

Defect Fishplate

• 57/054018 113A
Defect Protection Fishplate 800mm

A fishplate, also known as a rail joint or splice bar, connects two sections of railroad track. Fishplates are used to keep the rails aligned and spaced properly, which allows trains to pass safely and smoothly.

Clamp Components and First Bolts

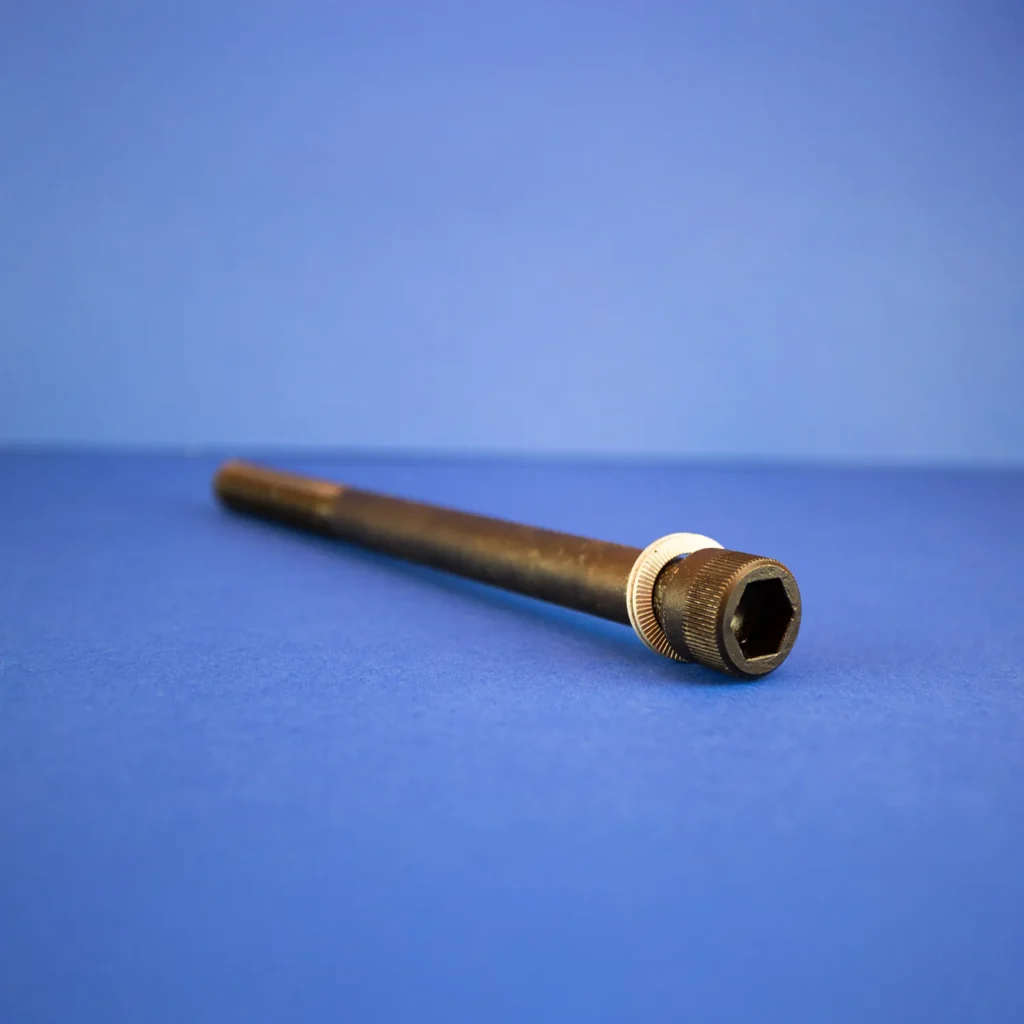

Bolt only for Flat Bottom Clamps
(inc nut and washer)

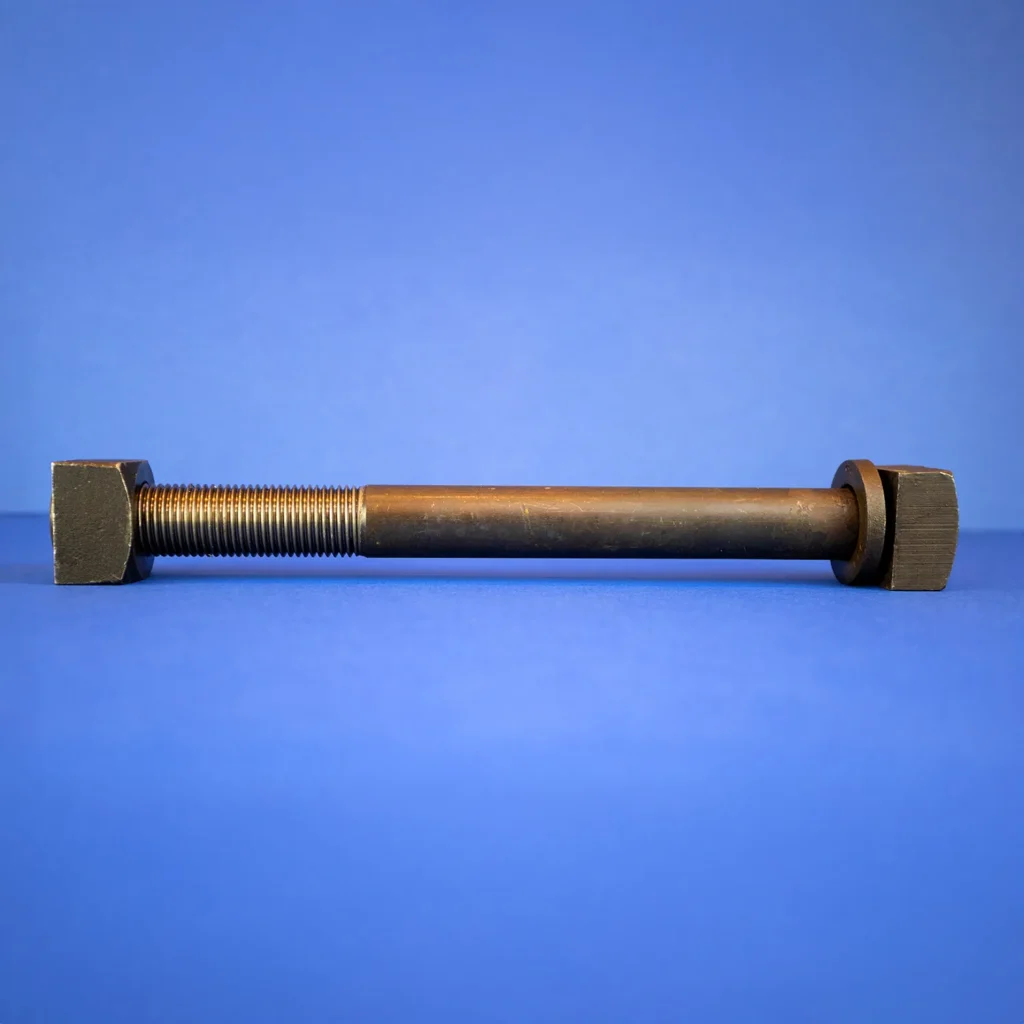

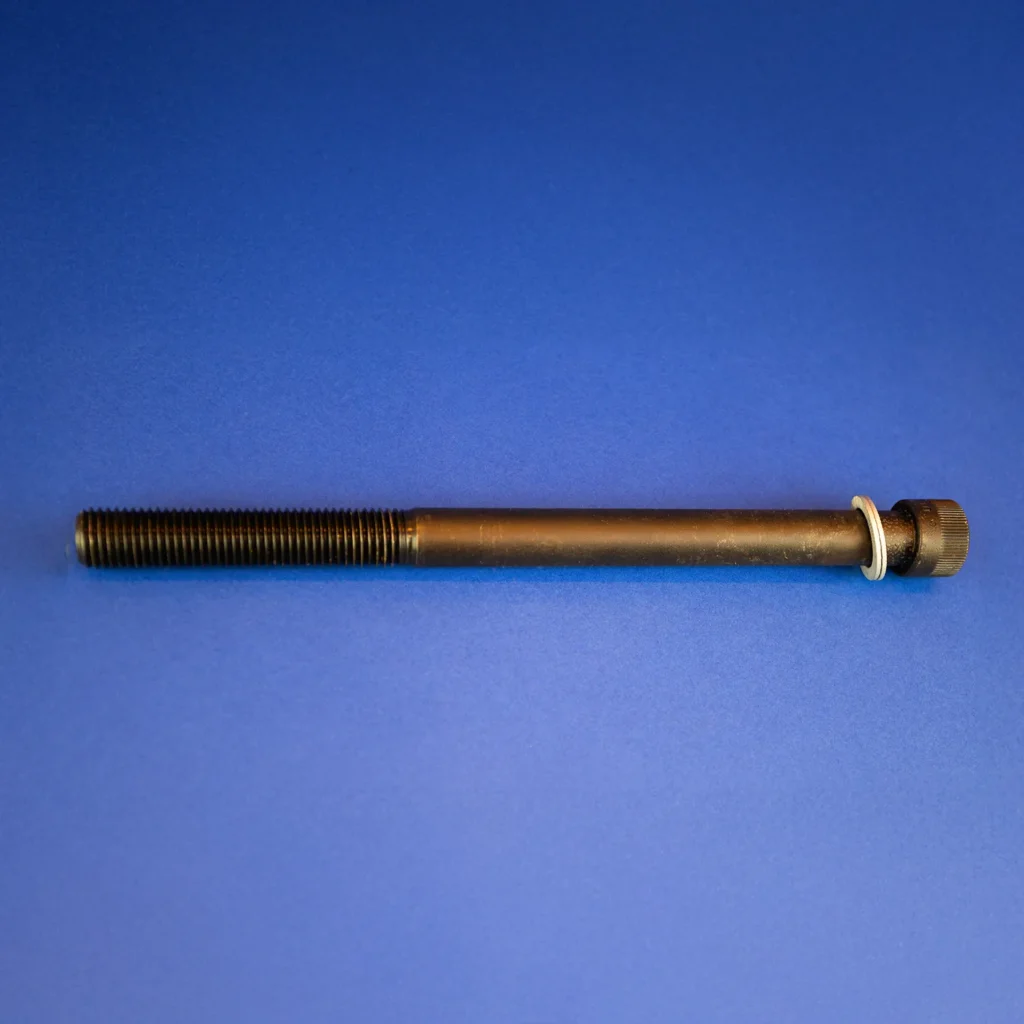

Bolt only for Bullhead Clamps
(inc nut and washer)

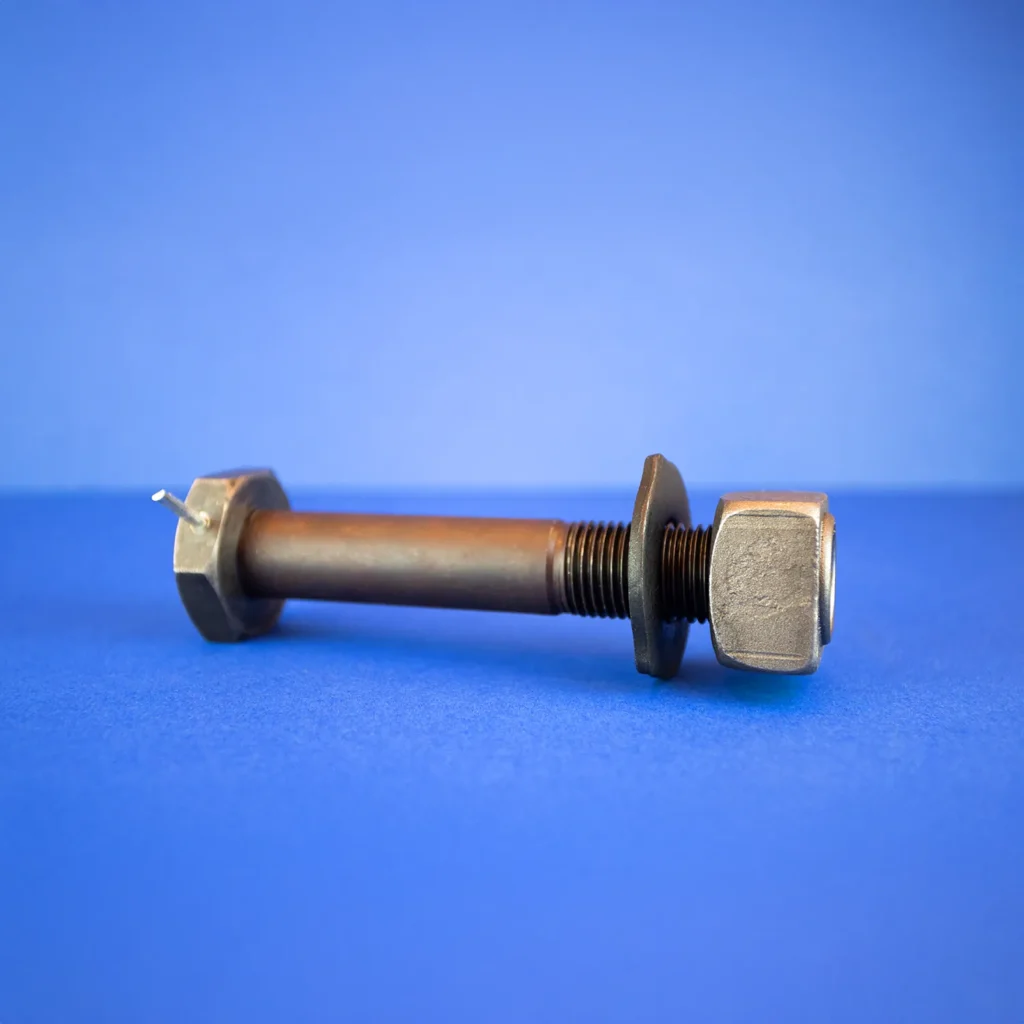

1″ Flat Bottom First Bolts

1″ Bullhead First Bolts

1.1/8″ Flat Bottom First Bolts

1″ Flat Bottom First Bolts

First Bolt Family

First bolts in rail clamps are the primary fasteners used to anchor the clamps securely to the track, ensuring alignment and stability. They play a critical role in maintaining the rail’s position, distributing forces evenly, and preventing movement under train loads. Proper installation of first bolts is essential for the safety and integrity of the railway system.

Lightweight Foam Access R.R.A.P

• 57/055150 LM0750M Full Five Bridge R.R.A.P

• 57/055151 LM0751M Single Bridge R.R.A.P

Foam Access RRAP (Road-Rail Access Point) ramps are lightweight, portable solutions used to create temporary access points for vehicles and machinery to transition safely between roadways and railway tracks. These ramps are designed to distribute weight evenly, reducing the risk of damage to rails or road surfaces.
